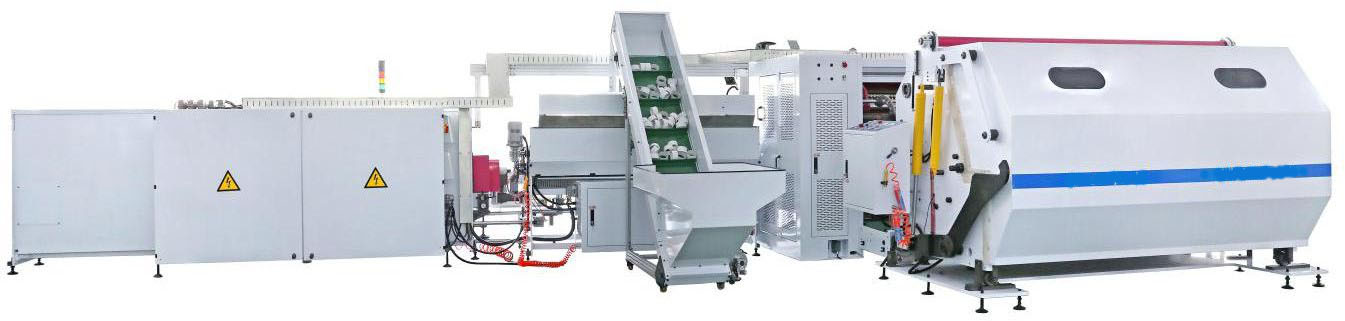

XMY-8218 1600MM Fully automatic adhesive tape slitting machine

XMY-8218 1600MM Fully automatic adhesive tape slitting machine

1. 用途Application :适用于 BOPP 封箱胶带,美纹纸胶带,布基胶带。Suitable BOPP Masking and Duct Tape rewind slitting.






2. 产品特点Product Characteristics



◆ 触摸屏控制,方便操作;性能稳定,简单培训后即可熟练操作。Touch screen control, easy to operate; stable performance, simple training can be skilled operation.

◆ 全自动一体化生产,贴标精度高达±1.5mm



Fully automatic production, labeling accuracy up to ±1.5 mm.



◆ 自动压轮,可生产超透明BOPP 封箱胶带。



Automatic press wheel, can produce super transparent BOPP sealing tape.

◆ 自动切断自动抚平,锯齿刀机械切断,断面整齐美观。Automatic cutting, automatic smoothing, saw tooth cutter mechanical cutting, section neat and beautiful.

◆ 自动上纸管,自动穿纸管,自动机械手卸成品。



Automatic transfer paper pipe, automatic manipulator unloading finished products.

◆ 最大放卷直径达到 1000mm



The maximum unwinding diameter is 1000 mm.








3. 机械参数Mechanical parameters



Available width 1750mm



最大放料直径Max Unwind Diameter1000mm 最大收卷直径Max Rewind Diameter250mm


机械速度Machine line speed



循环时间Cycle time

纸管内径Core Diameter: 机械规格Machine size: 使用电压Voltage

使用空压气源Air pressure

0-250m/min 36'(below 90m) φ76.2mm L9500*W5000*H2850mm

380V/50HZ 三相Three-phase 0.50.6MPa (5kgf-6kgf)

(需方自备Prepare yourself)
